Products / Air Curtains / 4000R Series



SchwankAir 4000R Series

Commercial and industrial air curtain

With its concealed placement, 4000R is very unobtrusive and particularly suitable for environments where the design is important and mounts up to 14′ high. SchwankAir 4000R Series is a light industrial air curtain built with an energy-efficient EC Motor with advanced controls which provide significantly low operating costs.

Applications

  • Retail warehouse
  • Large hardware stores
  • Loading dock
  • Universities & institutions
  • Transportation terminals
  • Transit terminals

SchwankAir 4000R Series highlights

Commercial and light industrial air curtain

SchwankAir recessed air curtains are built for commercial applications and mount on doors up to 14′ high and built with energy-efficient EC motors and a unique fan geometry which offers very low operating costs while maintaining a style design for the space.

Available models

  • Voltages – 208V, 480V, 600V
  • Ambient, Electric and Hot Water models available
  • Mounts heights up to 14’
  • Unit Lengths – 36″, 60″, 72″, 96″
  • Standard white color is available
  • Sound Rating:
    36” – 58dB / 60” – 58dB / 72” – 60dB / 96” – 62dB

Features

  • Energy-efficient EC Motor with variable speed control and low operating costs
  • Recessed mounting using threaded bars, which can also be fixed on the inside of the unit
  • Hot zinc-plated and powder enameled steel panels provide corrosion-proof housing
  • AMCA certified
  • 5-year limited warranty coverage
  • Paired with SchwankAir 4000 Series Controller system.  Control features include:
      • Thermostatic Operations
      • Variable Fan Speed
      • Automatic & Manual Heat Control
      • Eco & Comfort Mode, and
      • BMS Connectivity

Optional accessories

Included with your SchwankAir 4000R Series air curtain:

4000 Series Controller Package:

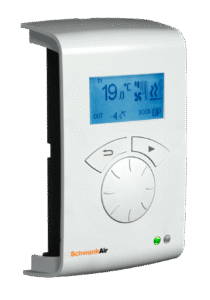

Wall Mounted Controller


Door switch

Smart controller board + temperature switch

Also includes:

Recessed: Unit Mounted Suspension Brackets

Optional accessories are sold separately.

  • Wire Suspension Kit
  • ¾” Plumbing Kit
  • Vibration Dampeners
  • V-Shaped Ceiling Brackets
  • Wall Brackets

Downloads

SchwankAir 4000R Series resources

Explore product brochures, case studies & technical information.

Brochure

Click on the image to view and download PDF.

Technical documents

Installation Manual

Controller Manual

Submittal

CSI Specifications

AutoCAD Drawings [DWG]

Revit
