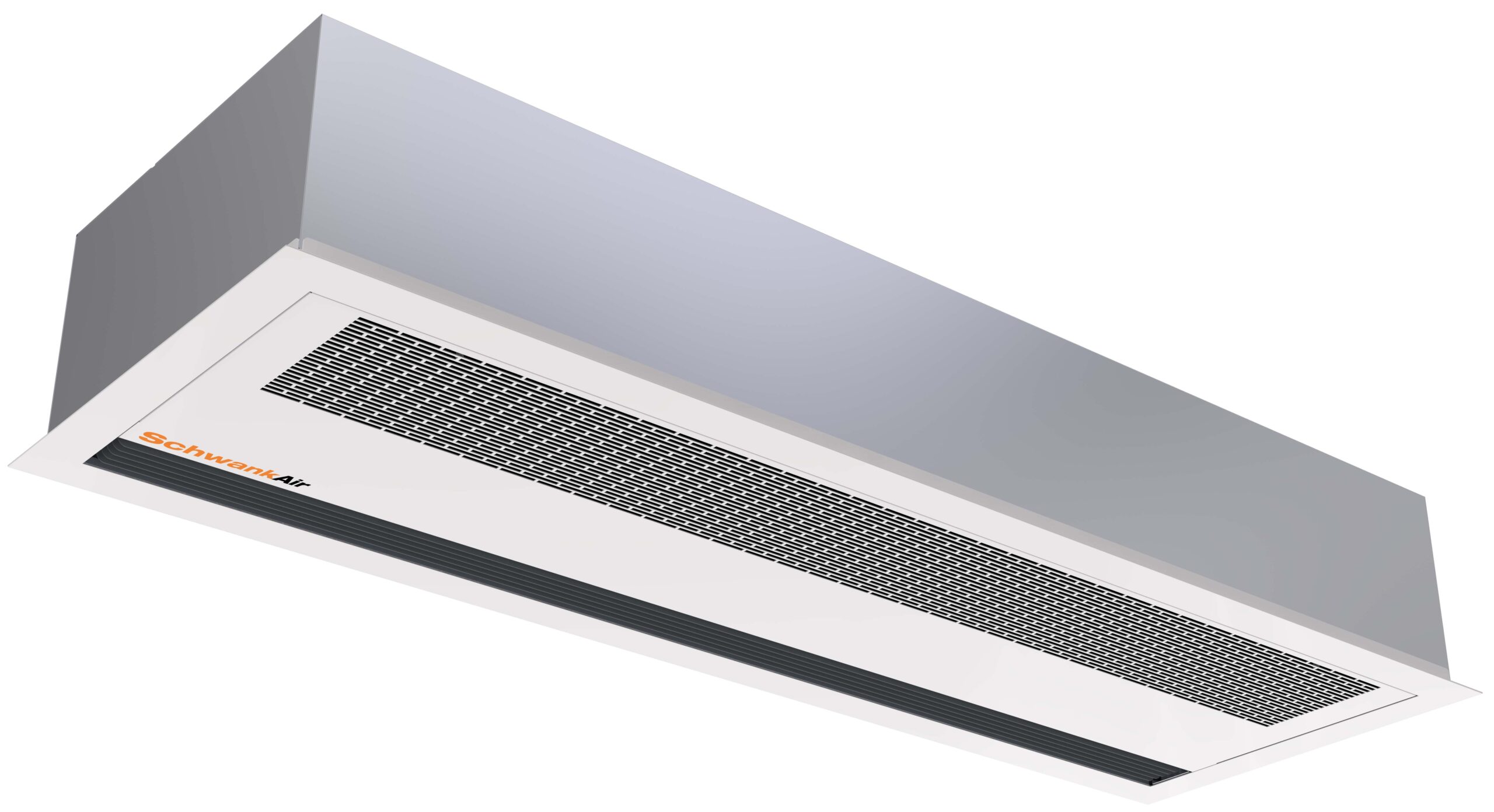

SchwankAir 3200R Series

AMCA certified recessed air curtain

SchwankAir 3200R Series is intended for recessed mounting in commercial buildings and small industrial entrances up to 11′, in order to create an air seal to keep conditioned air in the building and keep dust, dirt, and insects out. Available in multiple width models.

Applications

  • Retail
  • Restaurant
  • Entertainment venue
  • Small industrial entrances
  • Hospitals & healthcare
  • Universities & institutions
  • Office spaces
  • Shopping malls
  • Grocery stores

SchwankAir 3200R Series highlights

Your compact high-efficiency air curtain

SchwankAir 3200R Series easily mounts on doors up to 11′ and offers friendly installation and maintenance with an easy to open service hatch.

SchwankAir curtains are built for commercial applications with energy-efficient EC motors and a unique fan geometry which offers very low operating costs while maintaining a style design for the space.

Available models

  • Available in 208V, 480V, and 600V models
  • Nominal length options include 36″, 60″ and 72″ models
  • Mounts to any door up to 11 ft high
  • Available in ambient, electric heated, and hot water models for any type of application
  • Standard white color
  • Sound Rating: 36” – 54dB / 60” – 55dB / 72” – 54dB

Features

  • Energy-efficient EC Motor with variable speed control and low operating costs
  • Includes a unit-mounted controller and wireless remote controller with a door switch
  • Reduced dimensions and integrated frame
  • Corrosion proof frame and hatch made with hot zinc-plated and powder-coated steel panels
  • When mounting with threaded bars, the threaded bars can also be fixed on the inside of the unit
  • AMCA certified
  • 5-year limited warranty coverage

Optional accessories

Included with your SchwankAir 3200R Series air curtain:


Wireless remote control & door switch
[JC-0748-XX]

Built-in keypad controller


Suspension brackets for
recessed mounting [JC-0798-XX]



Optional accessories are sold separately.




Plumbing Kit  [JC-0752-XX]


Vibration Dampeners for ceiling-mounted air curtains [JC-0709-XX]

Downloads

SchwankAir 3200R Series resources

Explore product brochures, case studies & technical information.

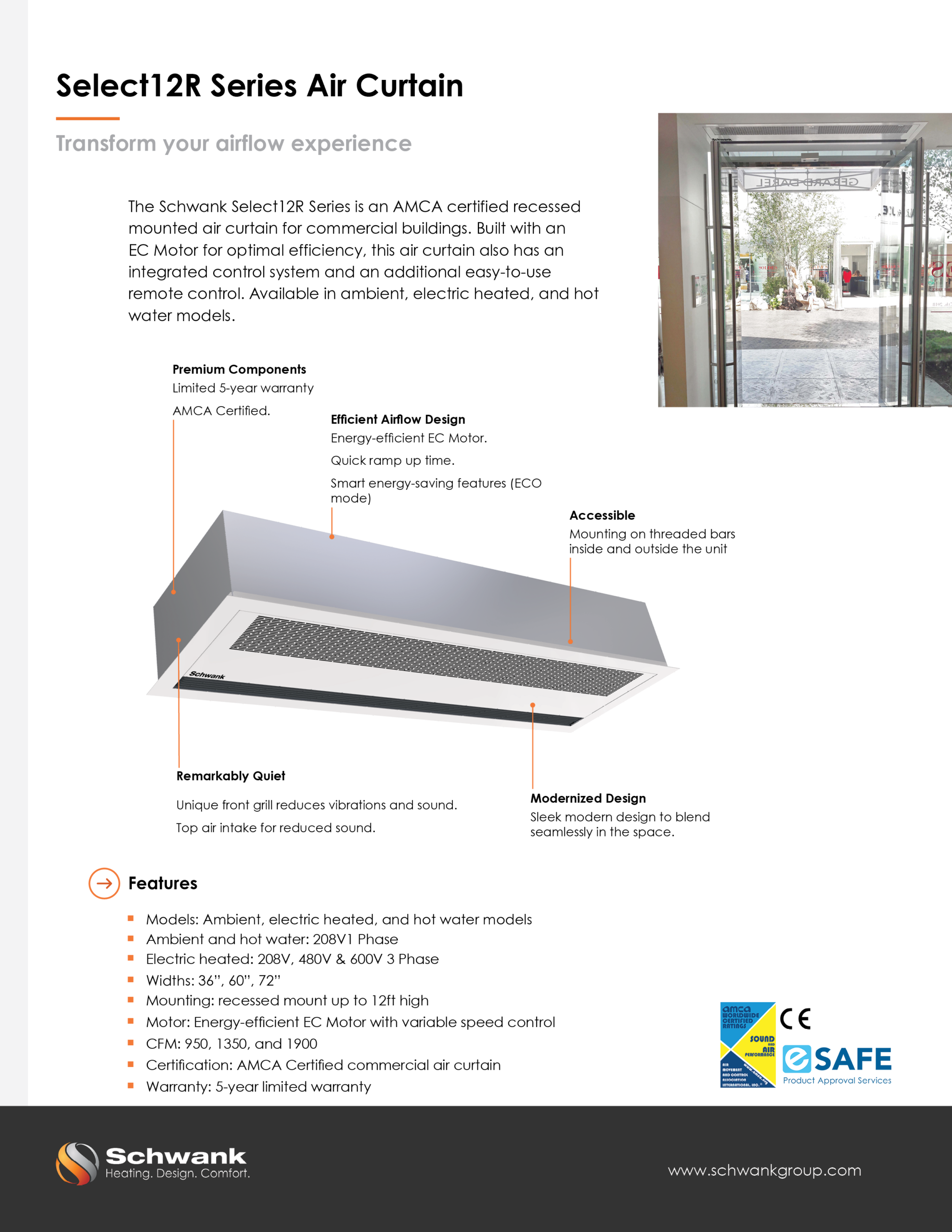

Brochure

Click on the image to view and download PDF.

Technical documents

Installation Manual

Submittal

CSI Specifications

AutoCAD Drawings [DWG]
