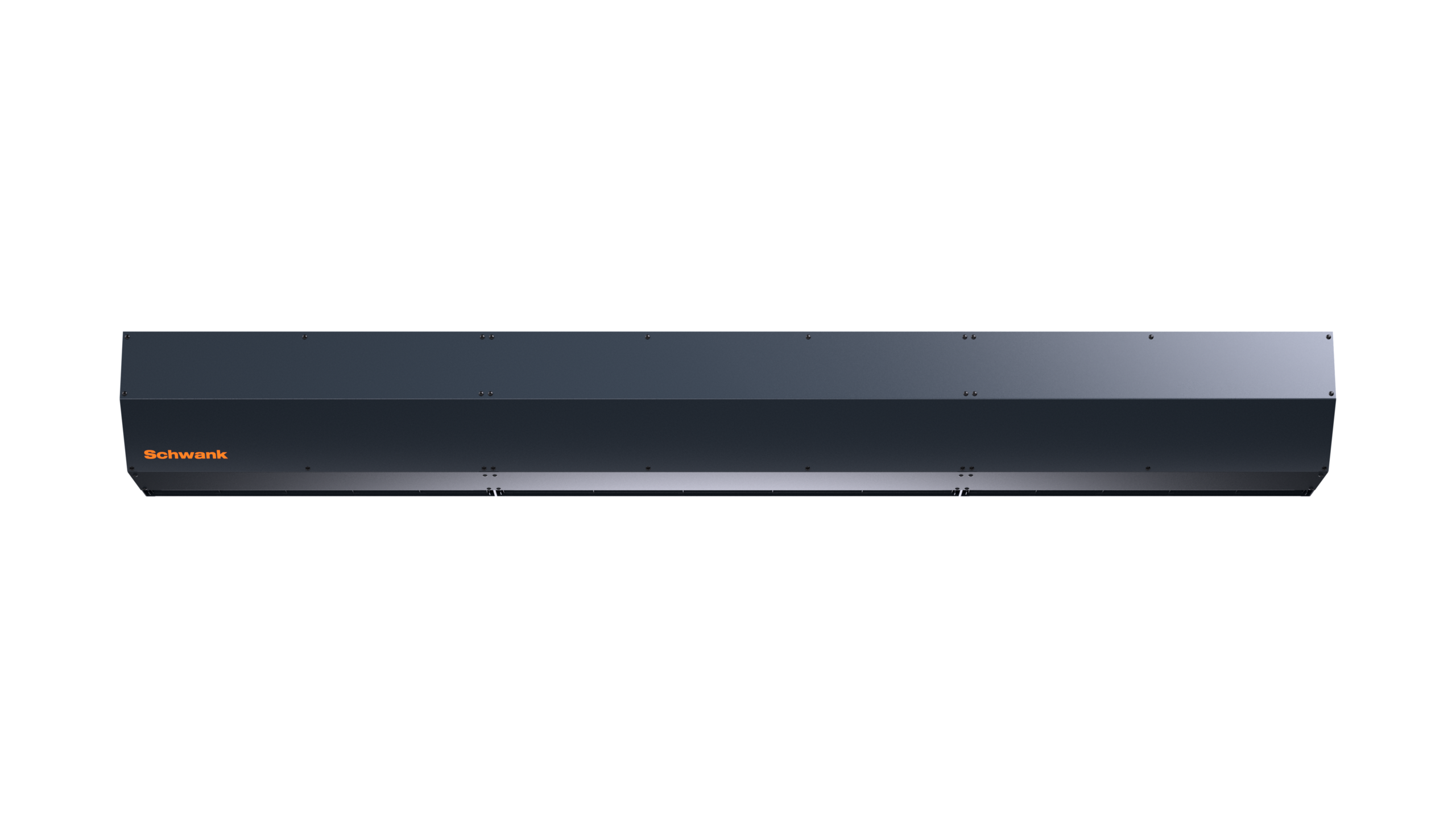

Schwank Epic12 Series
Mounting Height 10’–14′
Industrial Air Curtain Loading Dock

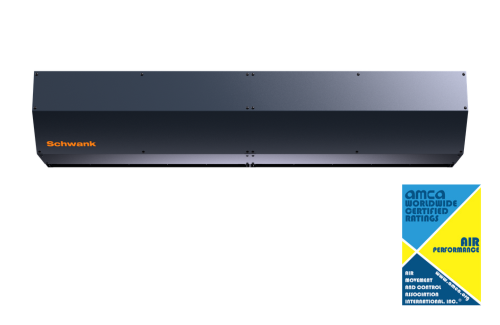

A compact industrial air curtain with AMCA-certified performance, with single-point entry and no external control box. Built for real-world operating mounting for 10-14′ doors in heavy-duty warehouses, dock doors, and loading bay doors.
Why Epic12 Series Compact Industrial Air Curtain?
One purpose-built air curtain for every 10–14’ door in your facility.
Performance
Powered by a 3/4HP AC motor (single- and three-phase), for consistent, high-velocity coverage across the full door opening.
Installation
Factory-integrated control panel for faster installation and minimized wiring time.
Standard 24V control and dry contact (BMS/fire relay) included.

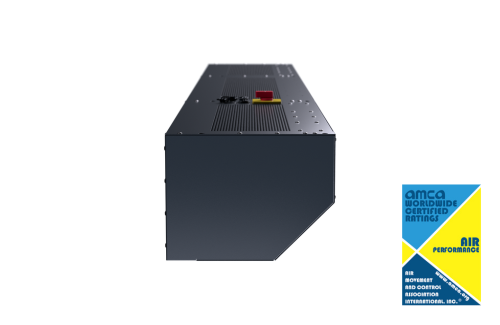

Compact Design
Integrated control panel hidden inside unit for cleaner aesthetics.
No external control boxes, no exposed wiring.
Mounting Height
10′ – 14′ door heights, recommended for 12′ height.
Covers the standard dock door height range without oversizing or undersizing.
Voltage
Compatible with all standard North American voltages.
120V, 208V, 480V, and 600V. Single-point wiring entry for simplified installation.
Models
Ambient and Electric Heated.
5-year limited warranty on ambient models; 2-year limited on electric heated.
Available now in Canada, watch for the product release in the USA soon.
Compact Industrial Design
- Industrial performance without bulky appearance.
Fast Installation
- Factory-integrated control panel for faster installation and minimized wiring time.
- Standard control package, with 24V control and dry contact (BMS/fire relay) included.
- Maximum accessibility — All electronics, motors, and blowers are serviceable from the front panel, even when mounted.
Performance
- Price-competitive industrial air curtain in its class while delivering up to 10% higher airflow with AMCA-certified performance.
- Standard 3-phase motor delivers reliable starts and smooth, powerful airflow.
Reliability
- Warranty: Ambient – 5-year limited. Electric Heated – 2-year limited..

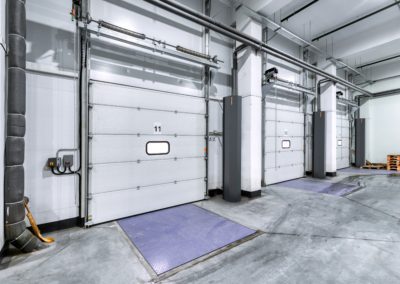

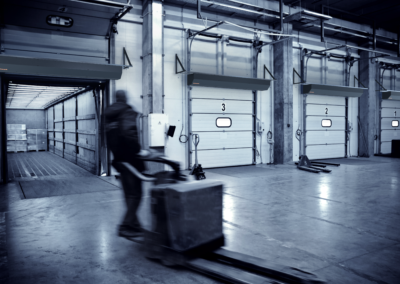

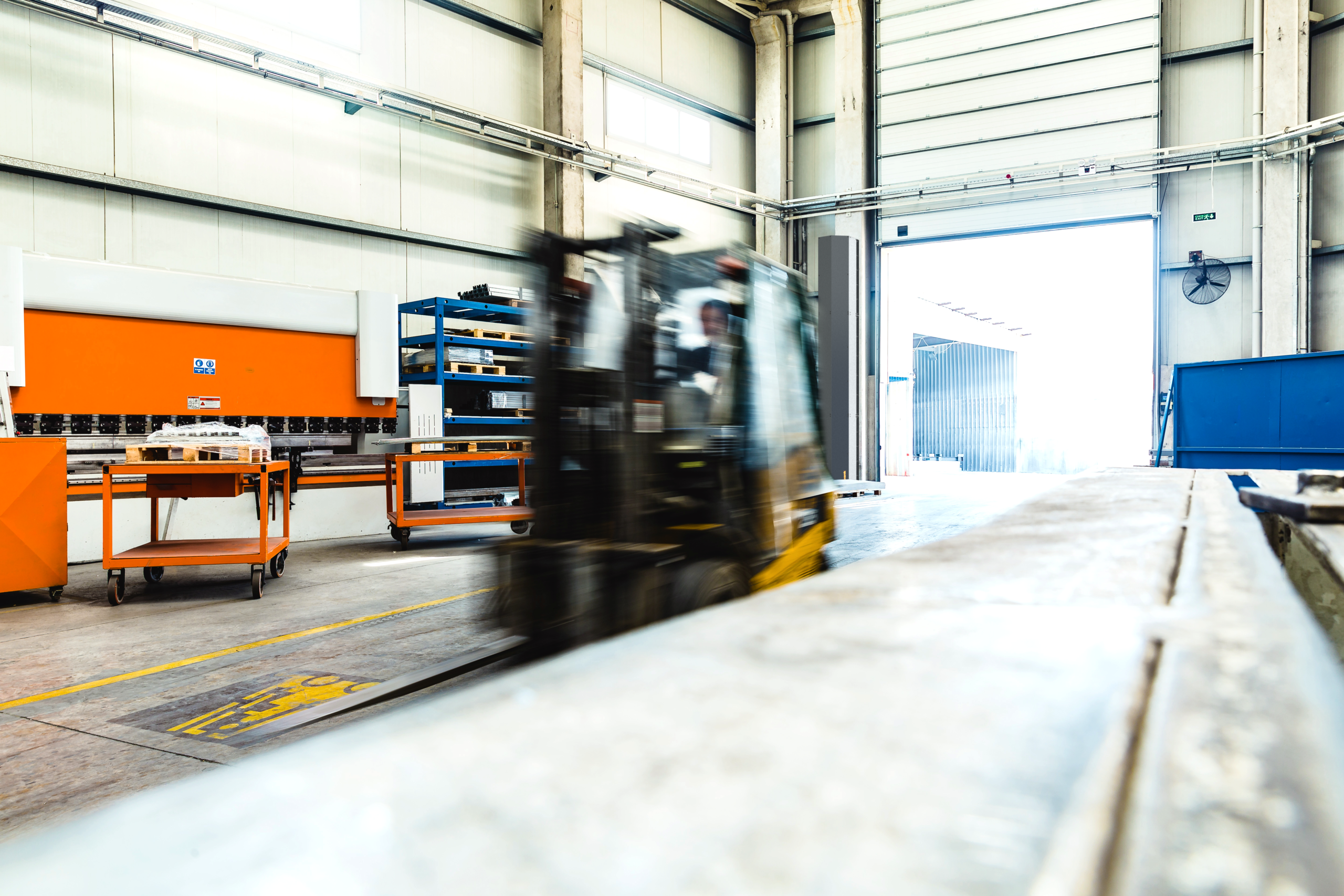

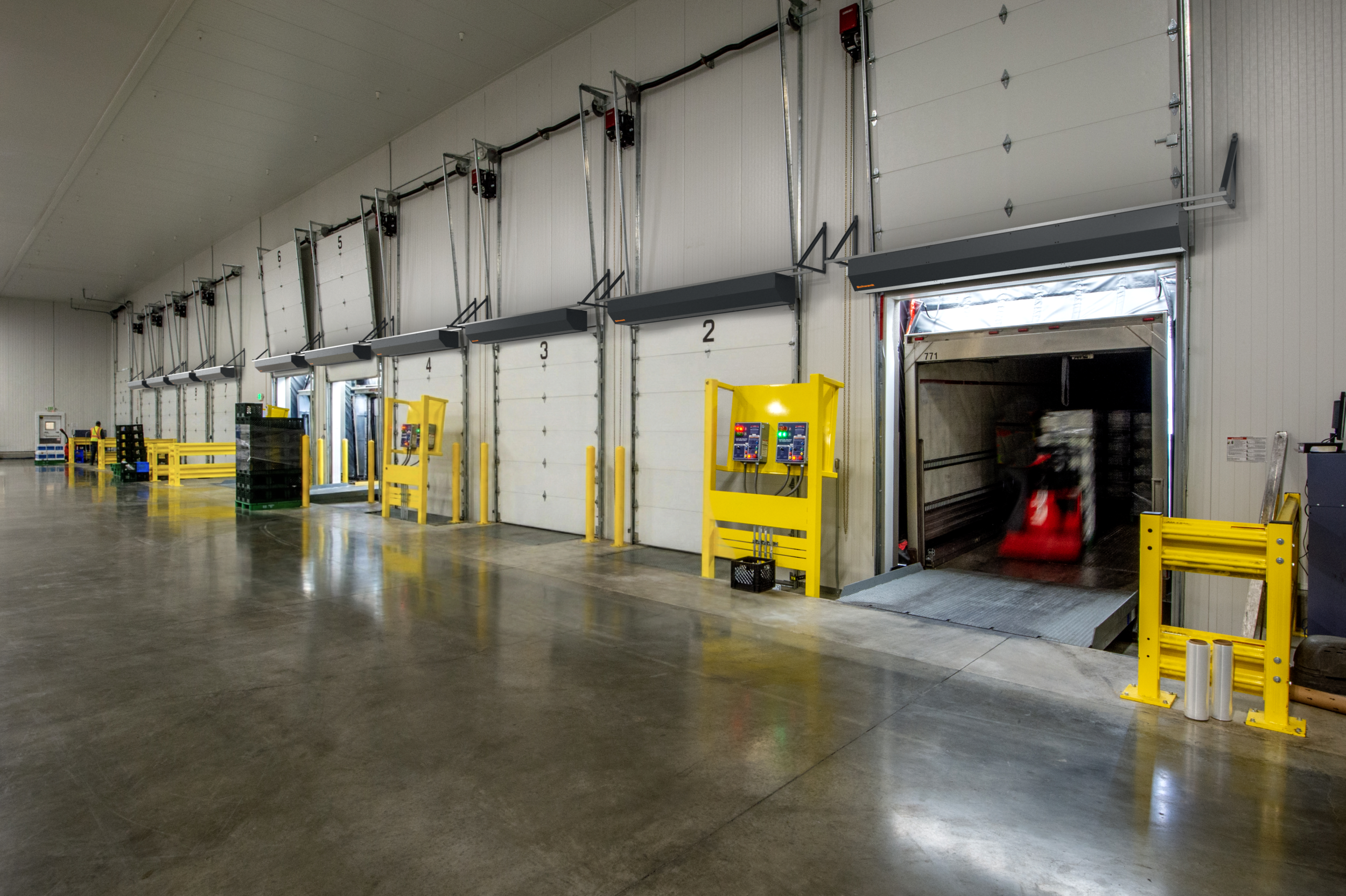

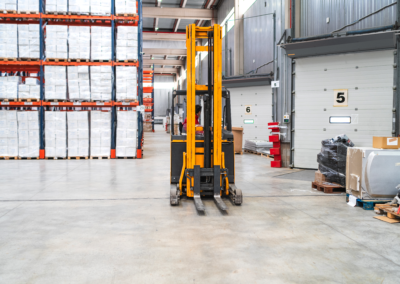

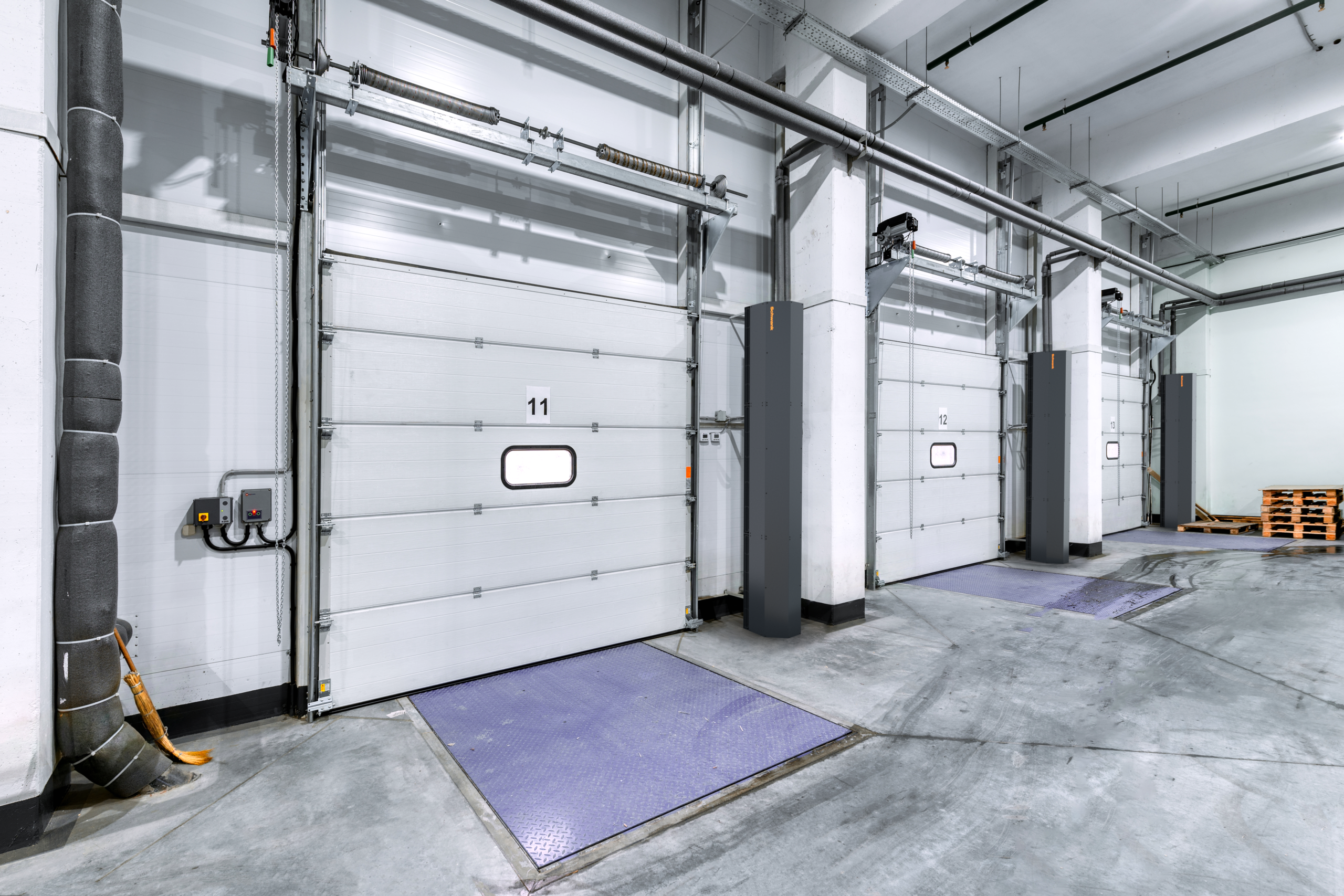

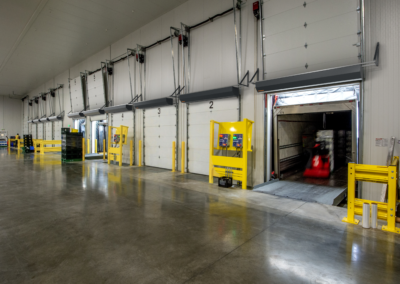

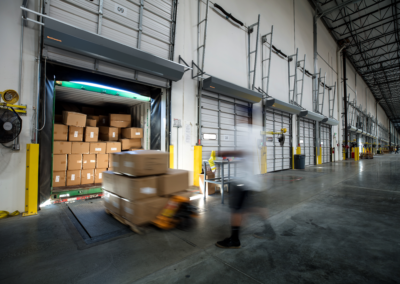

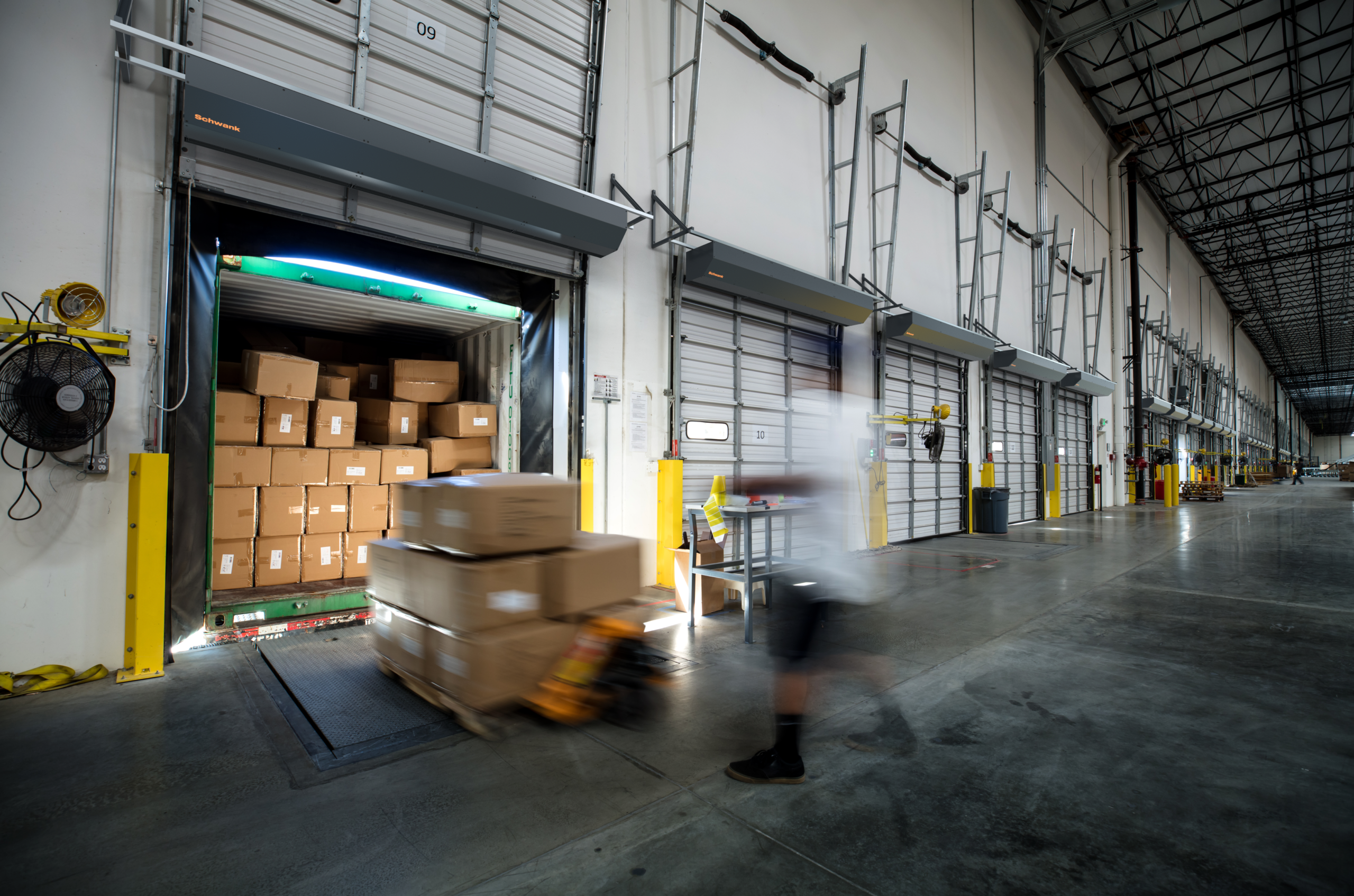

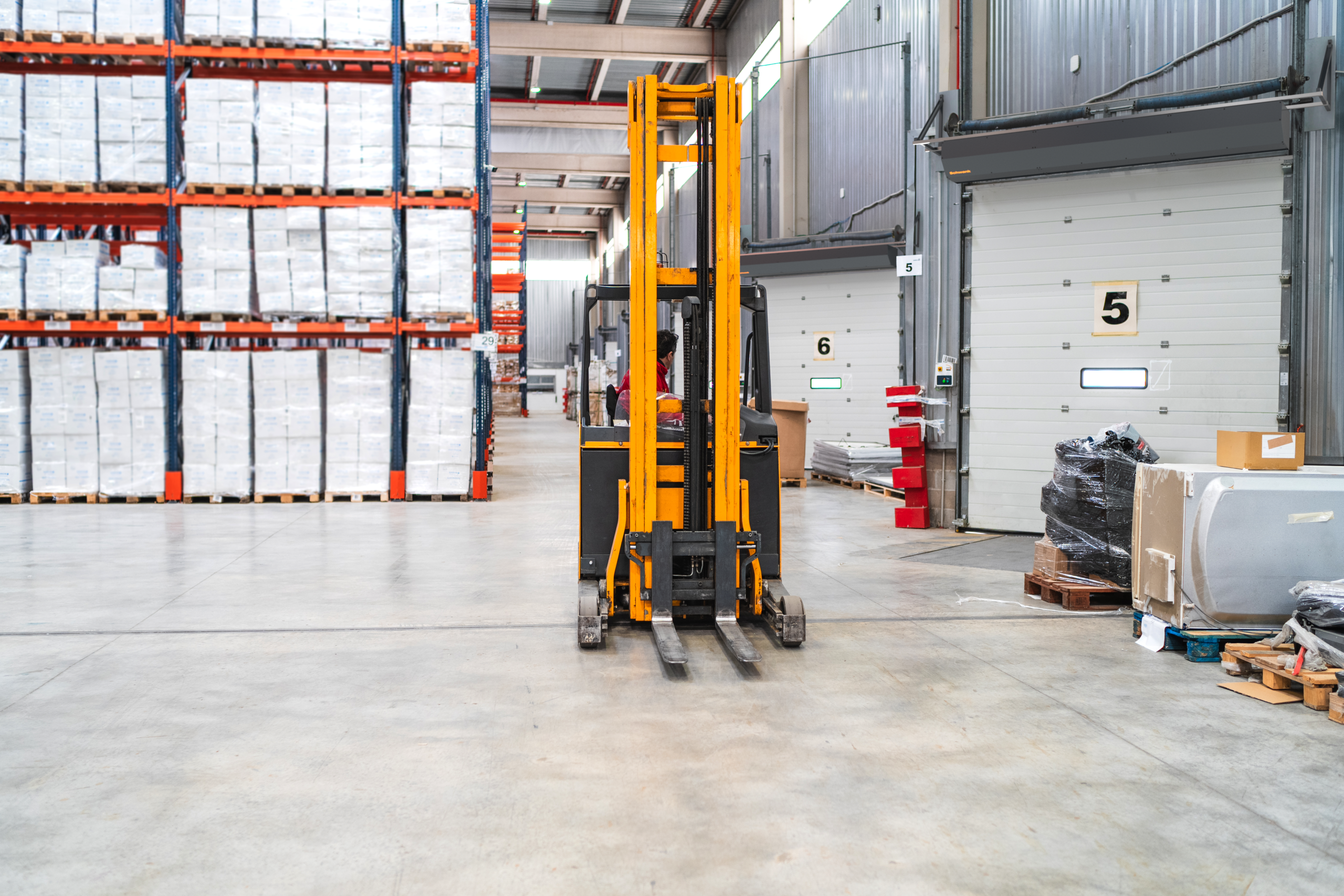

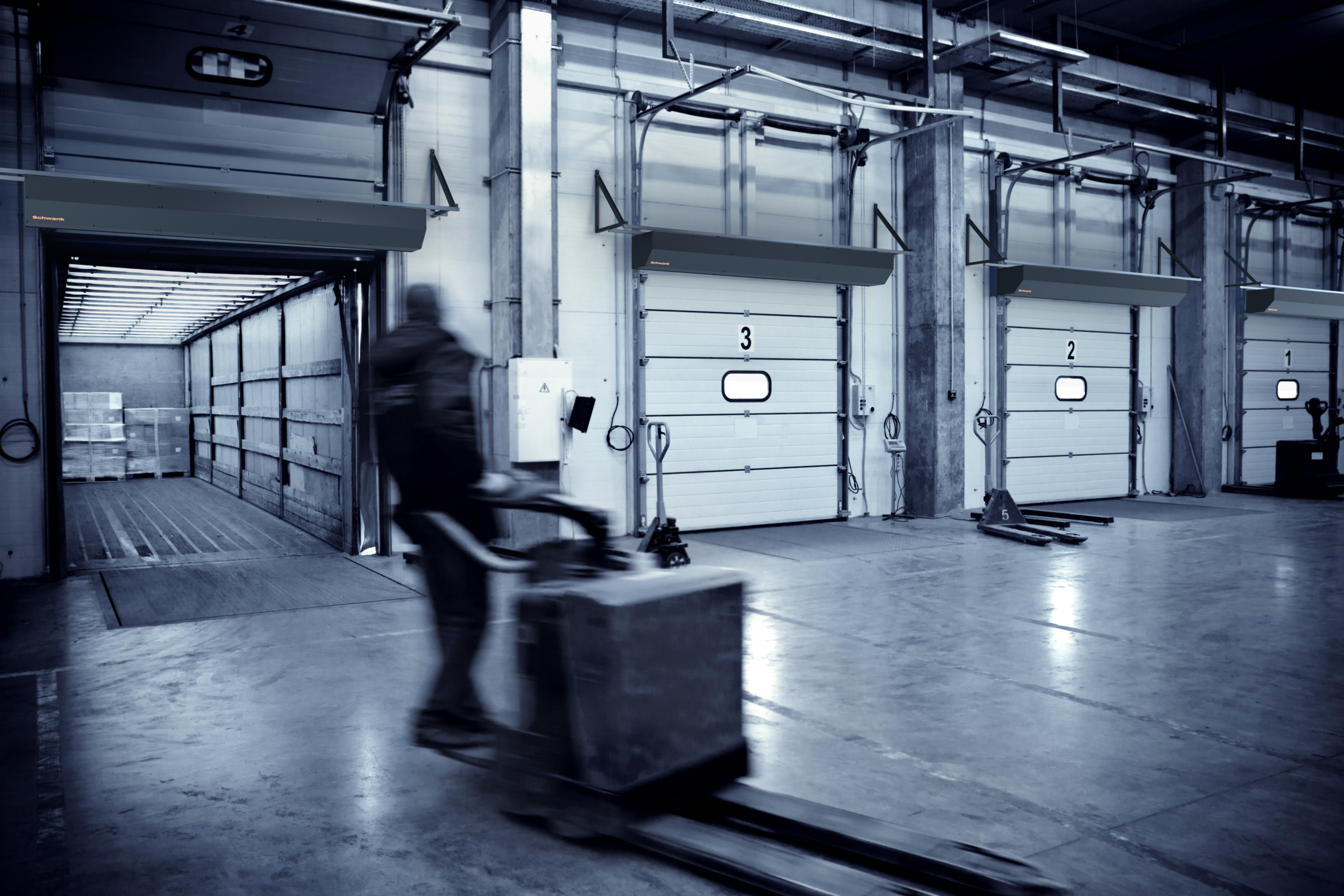

Applications
Built for Industrial Environments
- Warehouse
- Distribution Centers
- Loading Docks
- Shipping & Receiving Bays
- Production Facilities
- Manufacturing
Video
Watch how the Epic12 delivers 10% more airflow than competing units, AMCA-certified and engineered for the toughest dock-door environments. See why warehouse operators across Canada are choosing the Epic12 for their loading bays.

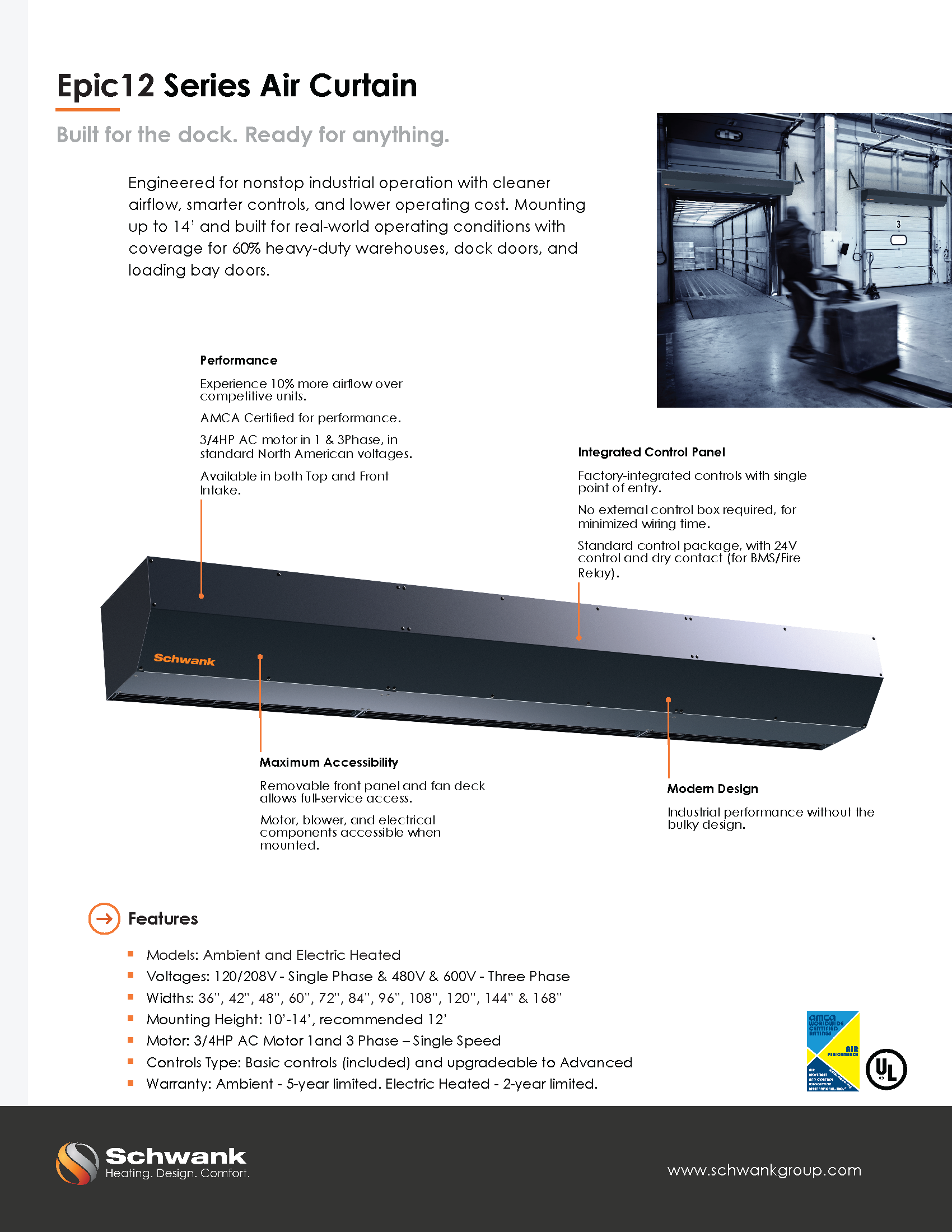

Brochure
Everything you need to specify and order, full sizing charts, airflow data, installation dimensions, and model numbers. Available in English and French.
Technical documents
Additional resources
FAQs
What is a dock door air curtain?
A dock door air curtain creates a high-velocity air barrier across open loading bay doors, blocking cold air, insects, and contaminants. The Schwank Epic12 is purpose-built for this application — engineered for 10–14′ dock doors with AMCA-certified performance and a factory-integrated control panel.
How much energy can it save?
Air curtains can reduce energy loss at open doors by up to 30%, depending on conditions.
What door heights is the Epic12 designed for?
The Epic12 is engineered for dock doors with a mounting height of 10 to 14 feet, with 12 feet as the recommended installation height for optimal performance.
What widths are available?
Schwank’s Epic12 air curtain is available in 11 widths: 36″, 42″, 48″, 60″, 72″, 84″, 96″, 108″, 120″, 144″, and 168″.
What voltages are supported?
All standard North American voltages 120V and 208V (single-phase), and 480V and 600V (three-phase).

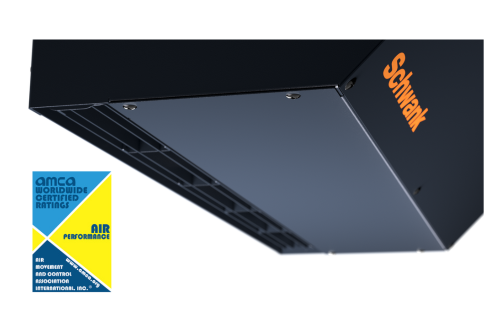

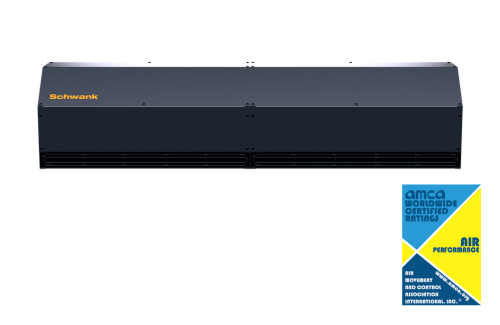

Is the Epic12 AMCA certified?
Yes. The Epic12 is independently AMCA-certified for air performance and delivers up to 10% more airflow than comparable competing units.
What is the warranty?
Ambient models carry a 5-year limited warranty. Electric heated models carry a 2-year limited warranty.
Does the Epic12 require an external control box?
No. The Epic12 features a factory-integrated control panel with single-point wiring entry. No external control box is needed.
