builderSchwank S100 Series

Indoor/outdoor economical industrial tube heater

The builderSchwank economical radiant tube heater is ideal for indoor or outdoor commercial and industrial applications. It shares many of the same features with the premierSchwank model. It also uses Schwank’s famous infrared radiant tube technology–an affordable heating alternative to traditional heaters, which just warm the surrounding air.

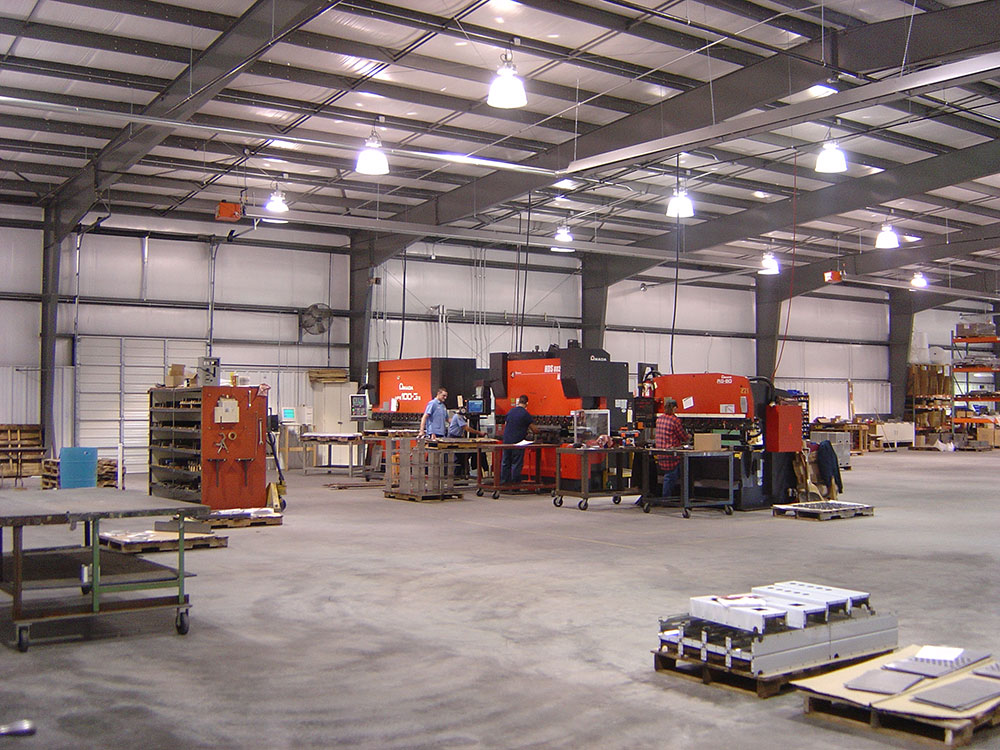

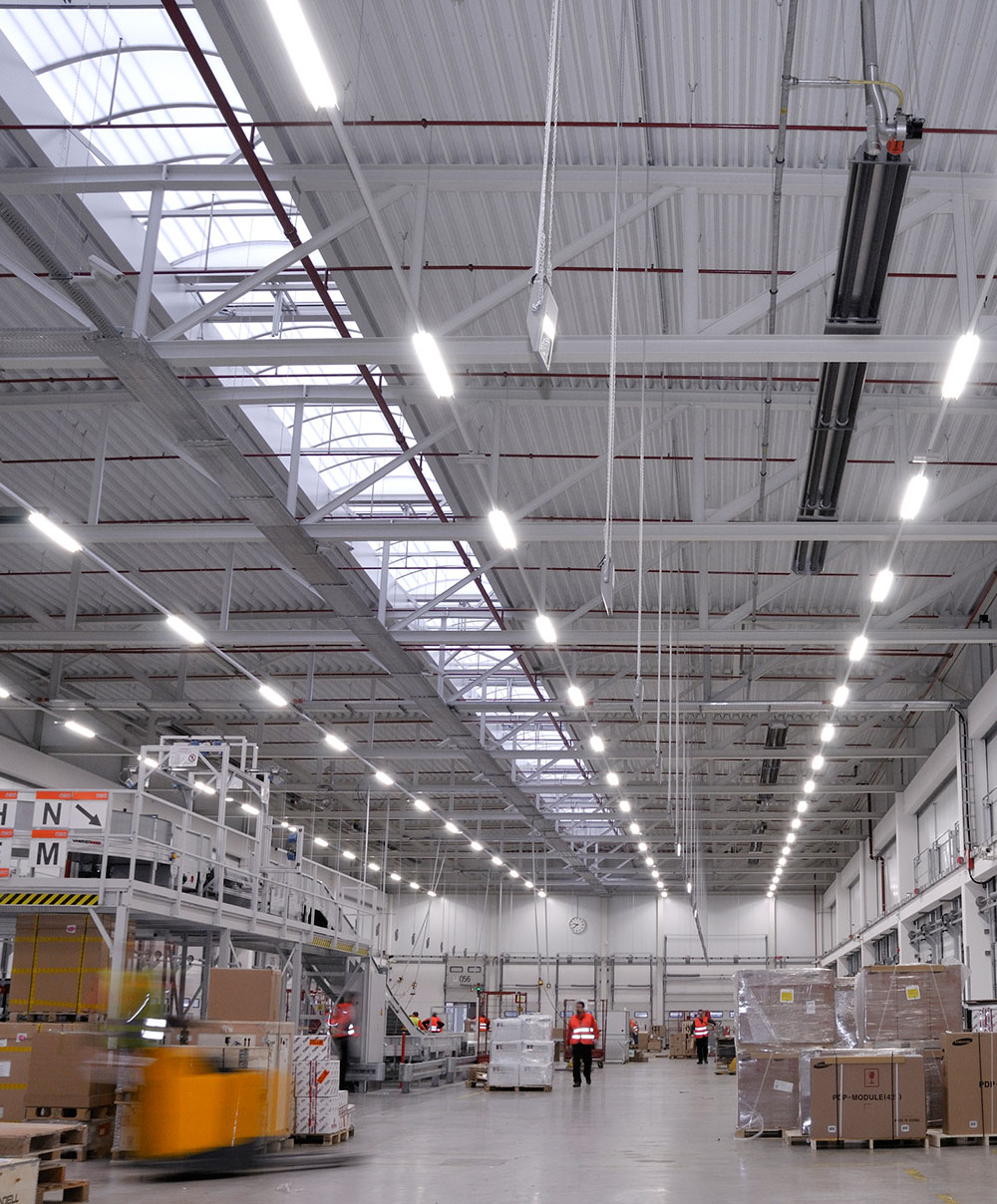

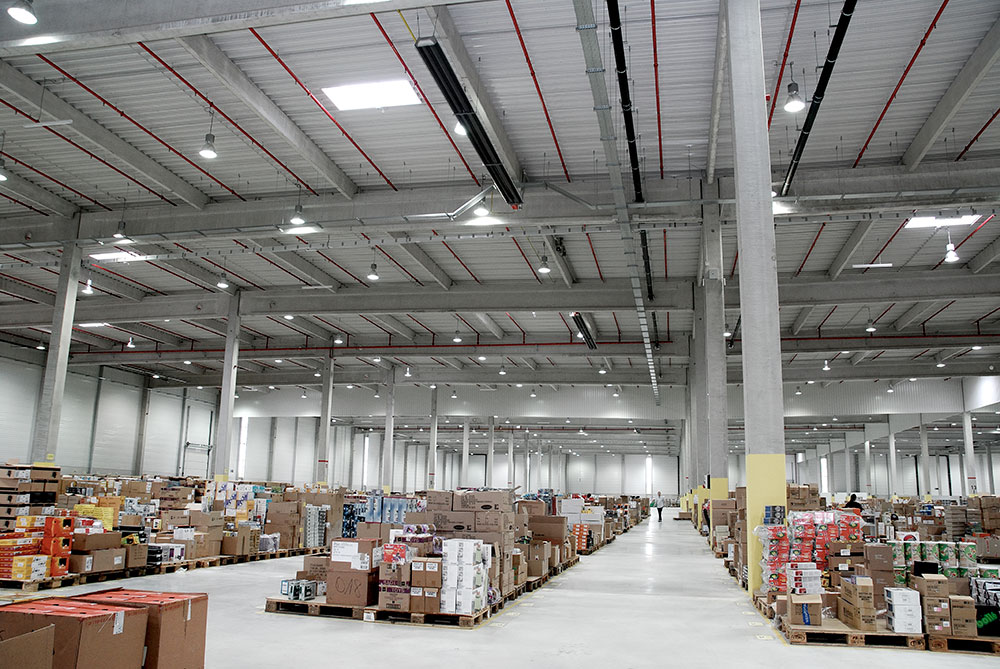

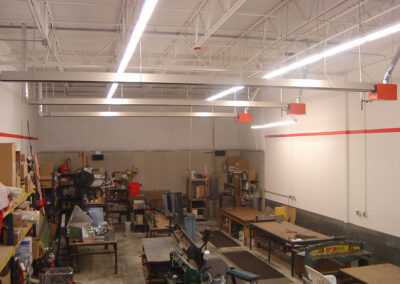

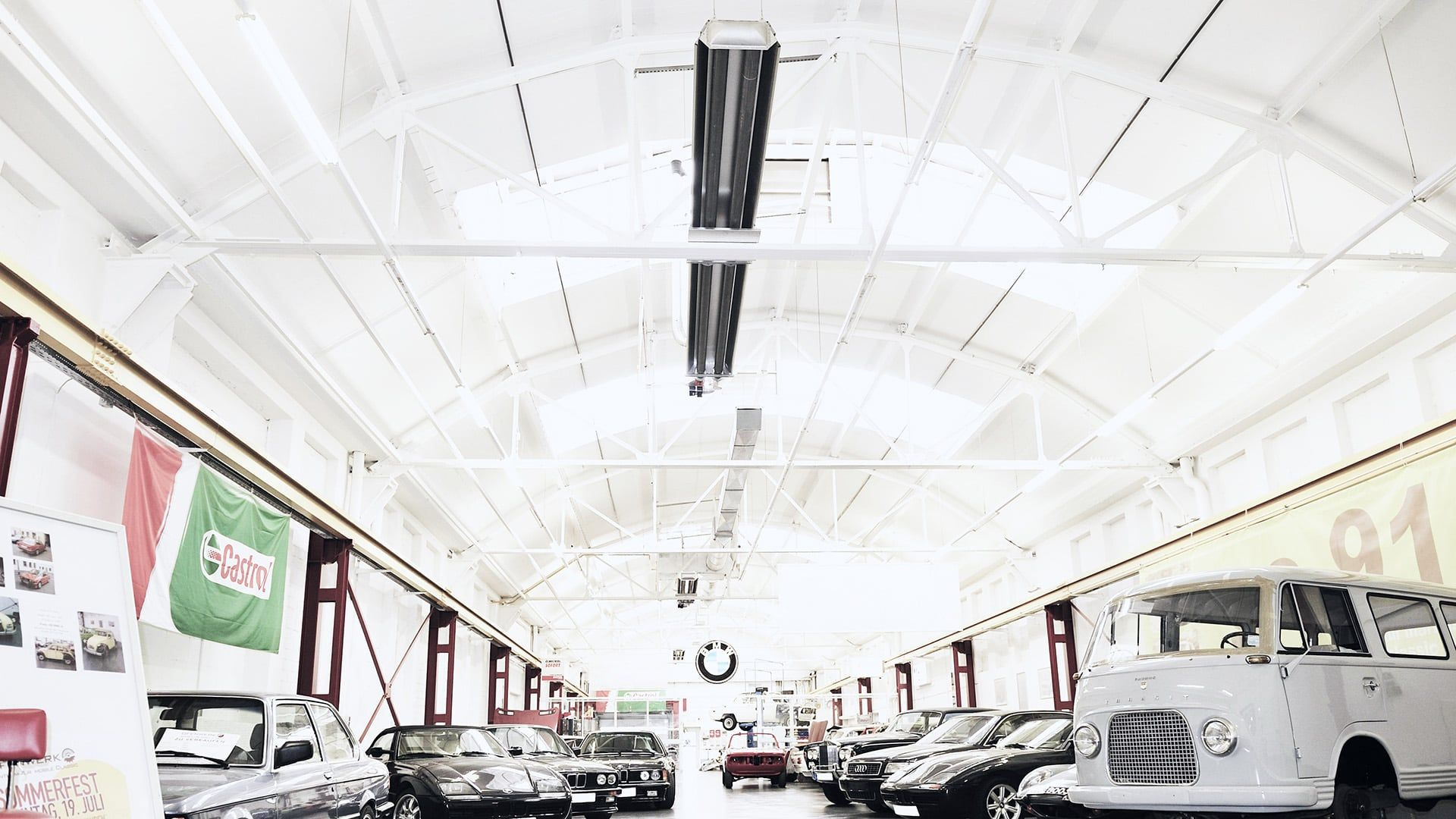

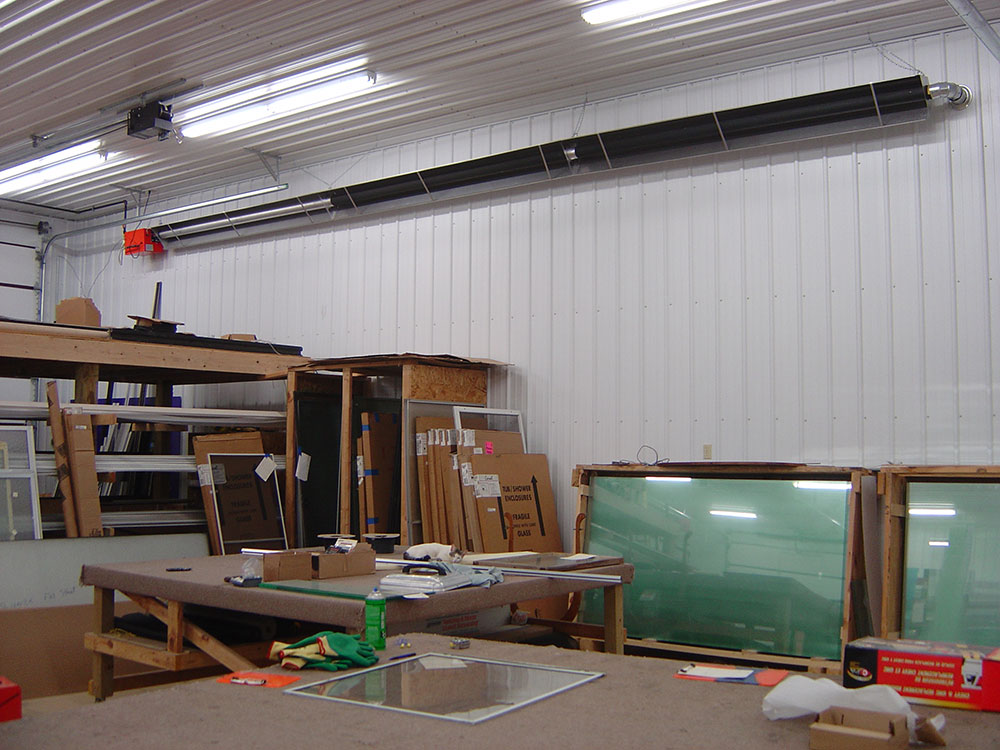

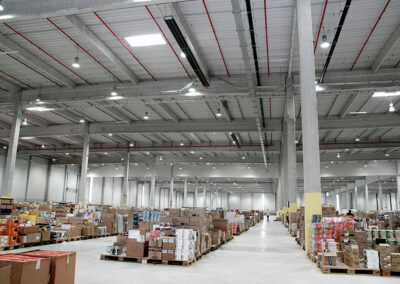

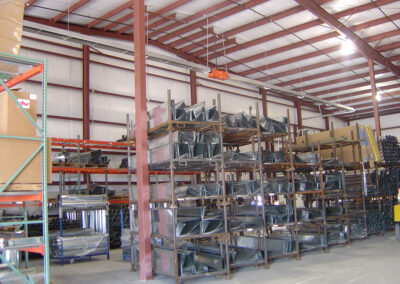

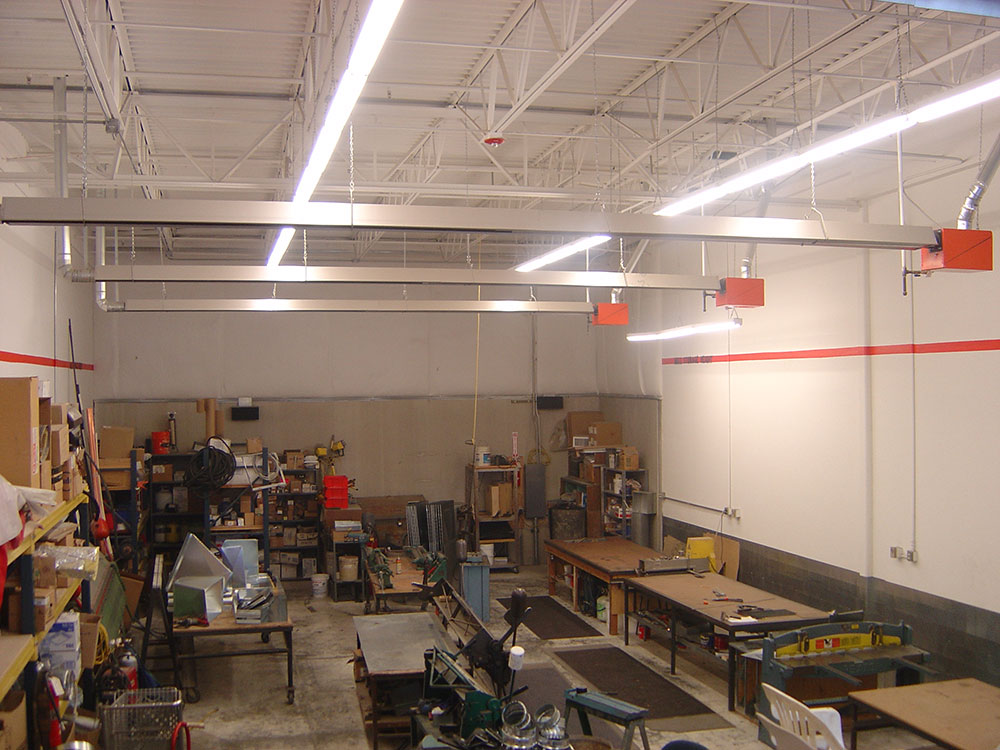

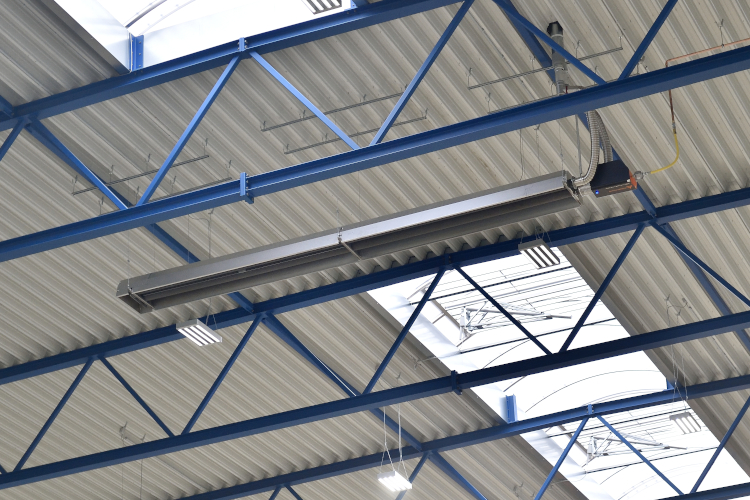

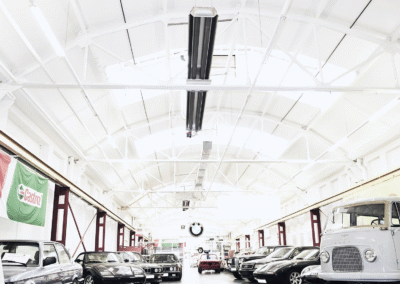

Applications

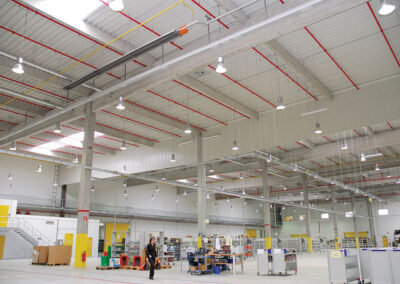

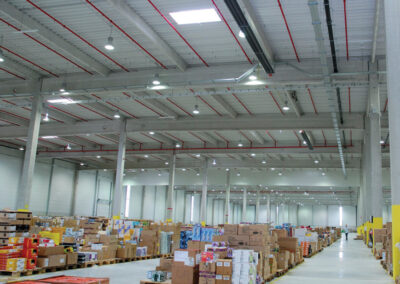

  • Warehouses

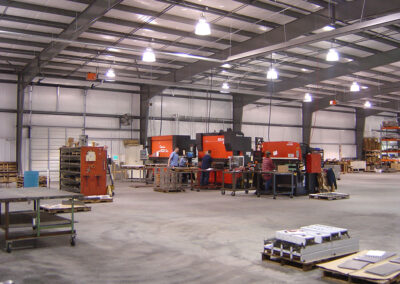

  • Manufacturing
  • Distribution centers

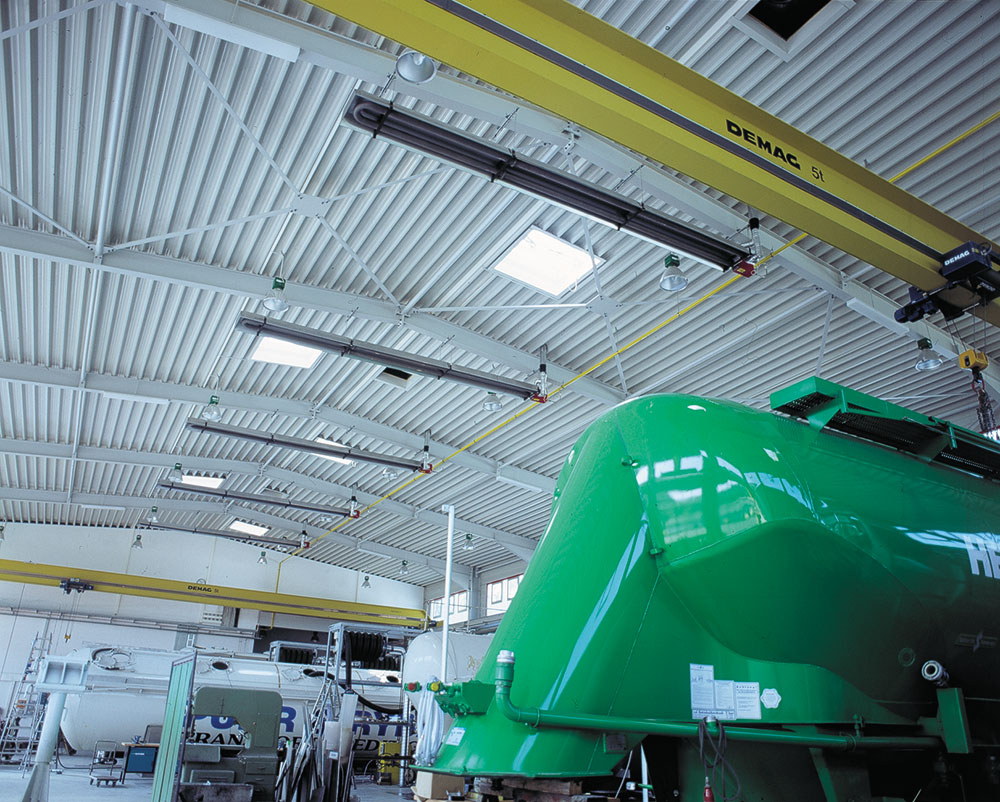

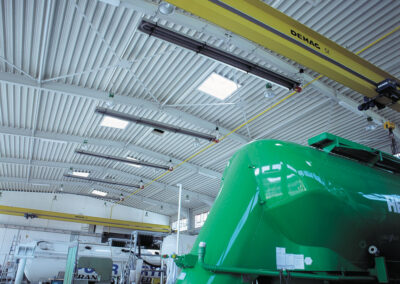

  • Vehicle maintenance
  • Airplane hangars
  • Industrial applications

builderSchwank Highlights

The most efficient gas-infrared Schwank tube heaters

As one of the most economical radiant tube heaters on the market, the builderSchwank can reduce your fuel costs by up to 50%. Built using Schwank’s low cost heating system design, the builderSchwank energy efficient heater provides a quick payback period.

builderSchwank is available in single-stage and two-stage for dual heat settings. This option lowers energy consumption and increases equipment life by reducing ON/OFF cycles up to 35%.

Models

  • 45,000, 60,000, 80,000, 100,000, 110,000, 130,000, 155,000, 175,000 and 200,000 input BTU/HR models
  • 10′, 20′, 30′, 40′, 50′, 60′, and 70′ heater lengths
  • Available in single-stage and 2-stage models
  • UL Certified

Optional accessories

  • Thermostat 120V [JL-0772-XX]
  • TruTemp Thermostat [JM-0150-XX]
  • Thermostat 24V digital [JS-0569-WR]
  • 24V control center
  • Air intake wall cap [JS-0532-VC]
  • Horizontal flue vent terminal [JA-0528-XX]
  • Elbow Kit [JS-0508-SM]
  • #2 Lion chain [JL-0800-XX]

Features

  • Our Whisper-Jet technology significantly reduces noise for employee
  • Schwank’s unique clamshell cabinet design allows for easy maintenance and access
  • Lowest fuel cost of any industrial infrared tube heaters with fuel savings of up to 50%
  • The 2-stage heating system lowers energy consumption and increases equipment life by reducing on/off cycles by up to 35%
  • The burner tile, a patented Schwank development, uses coaxial flow control elements to create a very long, laminar, and axially straight flame.
  • Line voltage and 24-volt thermostat ready.
  • Flexible system configurations including straight, U-shaped, and L-shaped.
  • 5-year replacement warranty on the infrared radiant tube.
