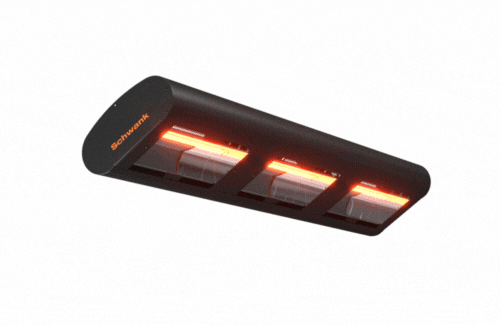

eSchwank Titan Series
Titan Strength for Precision Heat.
Engineered for maximum performance, the Titan shortwave infrared heater delivers instant, high-intensity heat in 6kW and 12kW models. Available in 208V / 480V / 600V ~3P, it’s built for power, efficiency, and durability—delivering heat from heights you never thought possible.
Applications

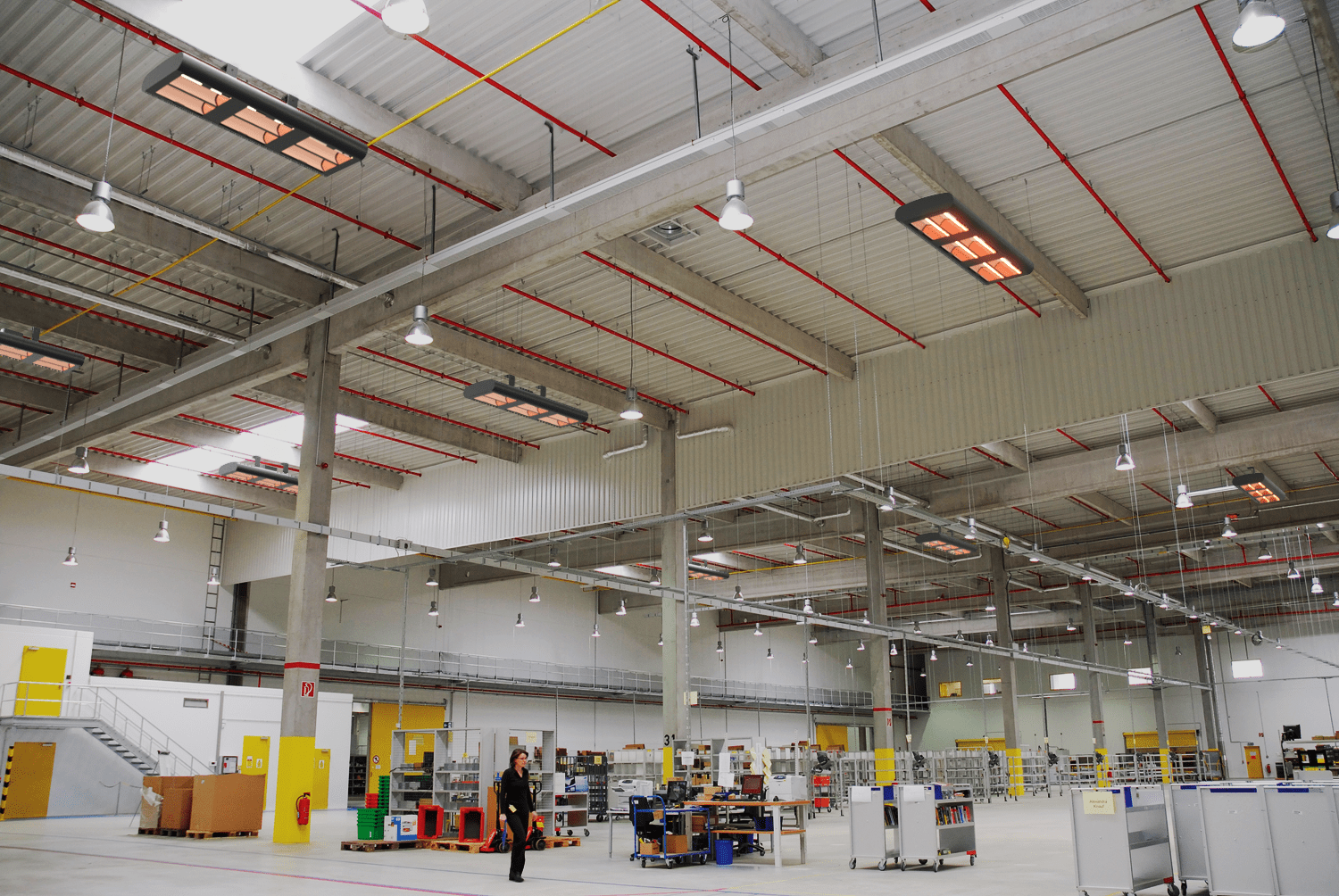

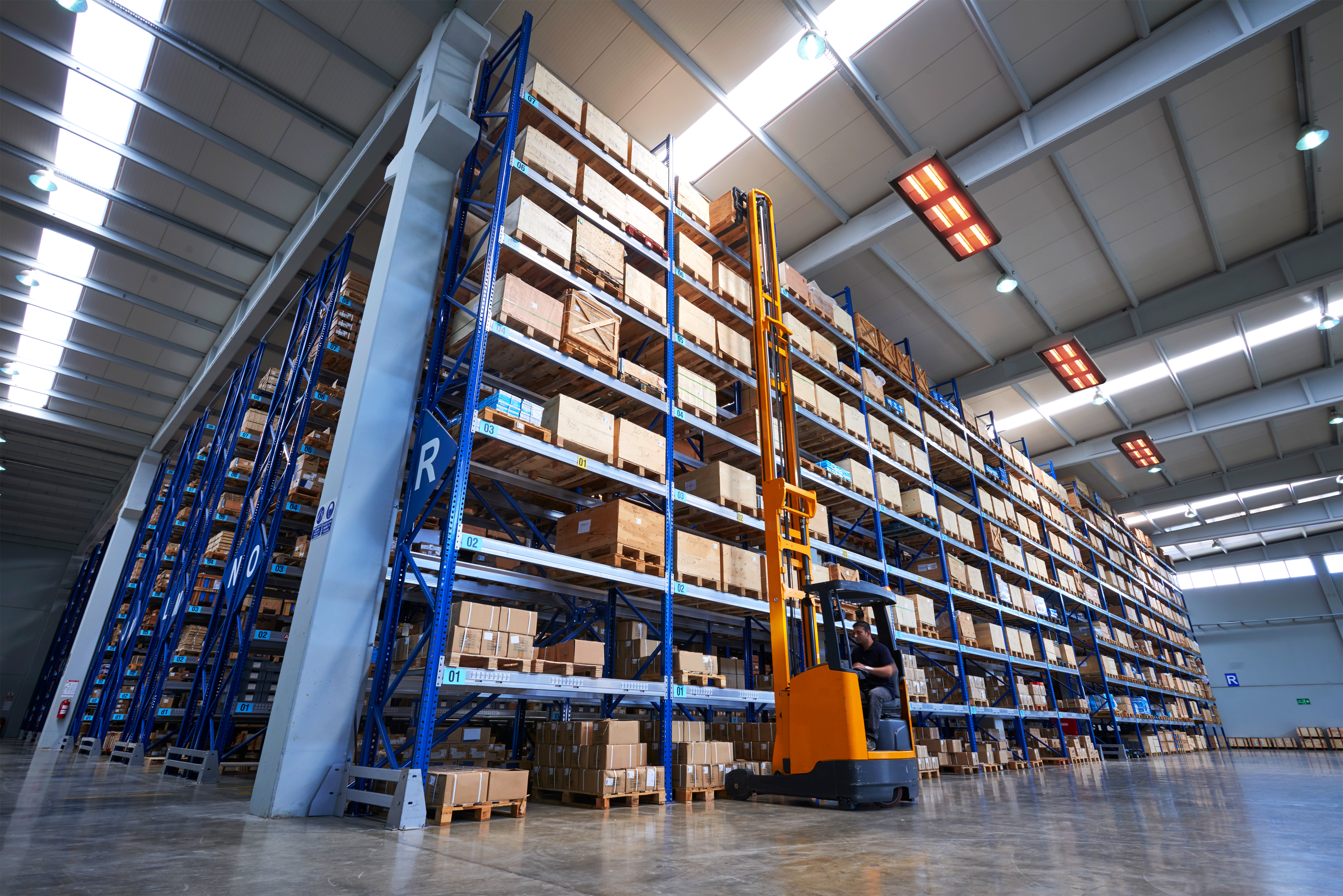

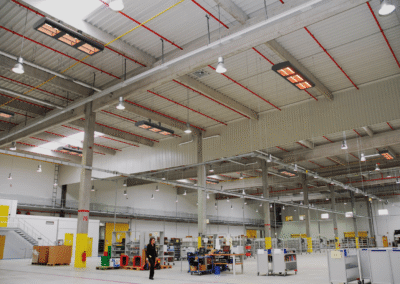

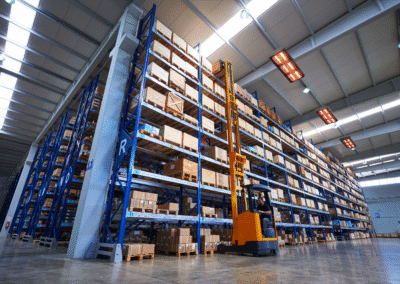

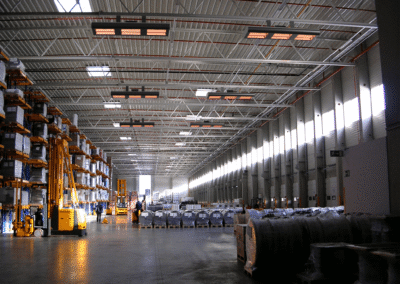

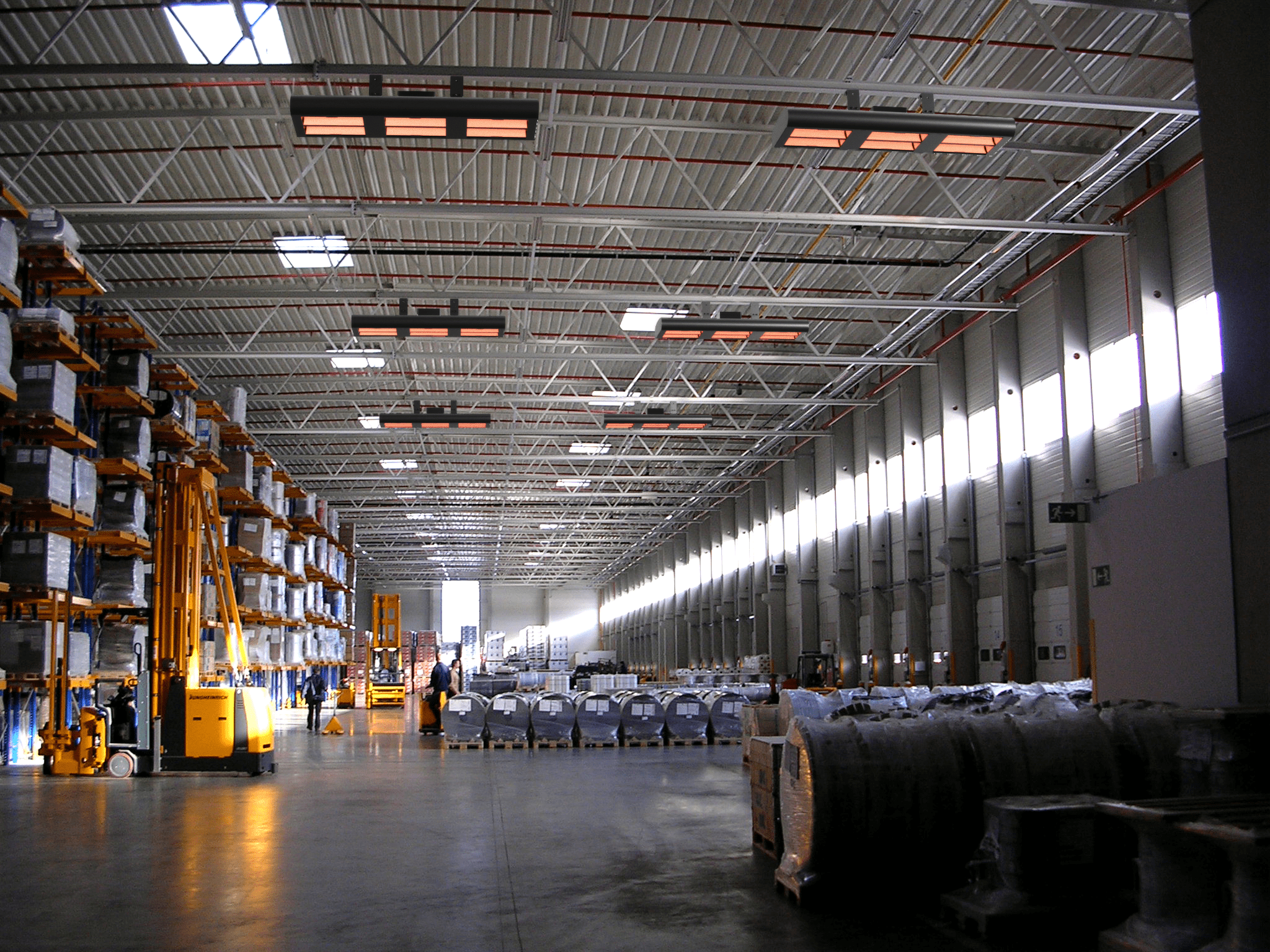

- Distribution Centers / Warehouses

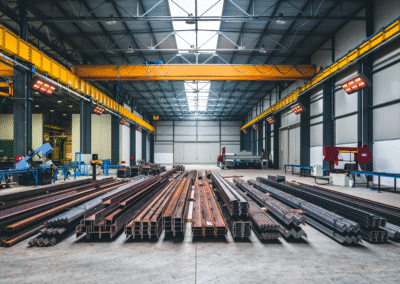

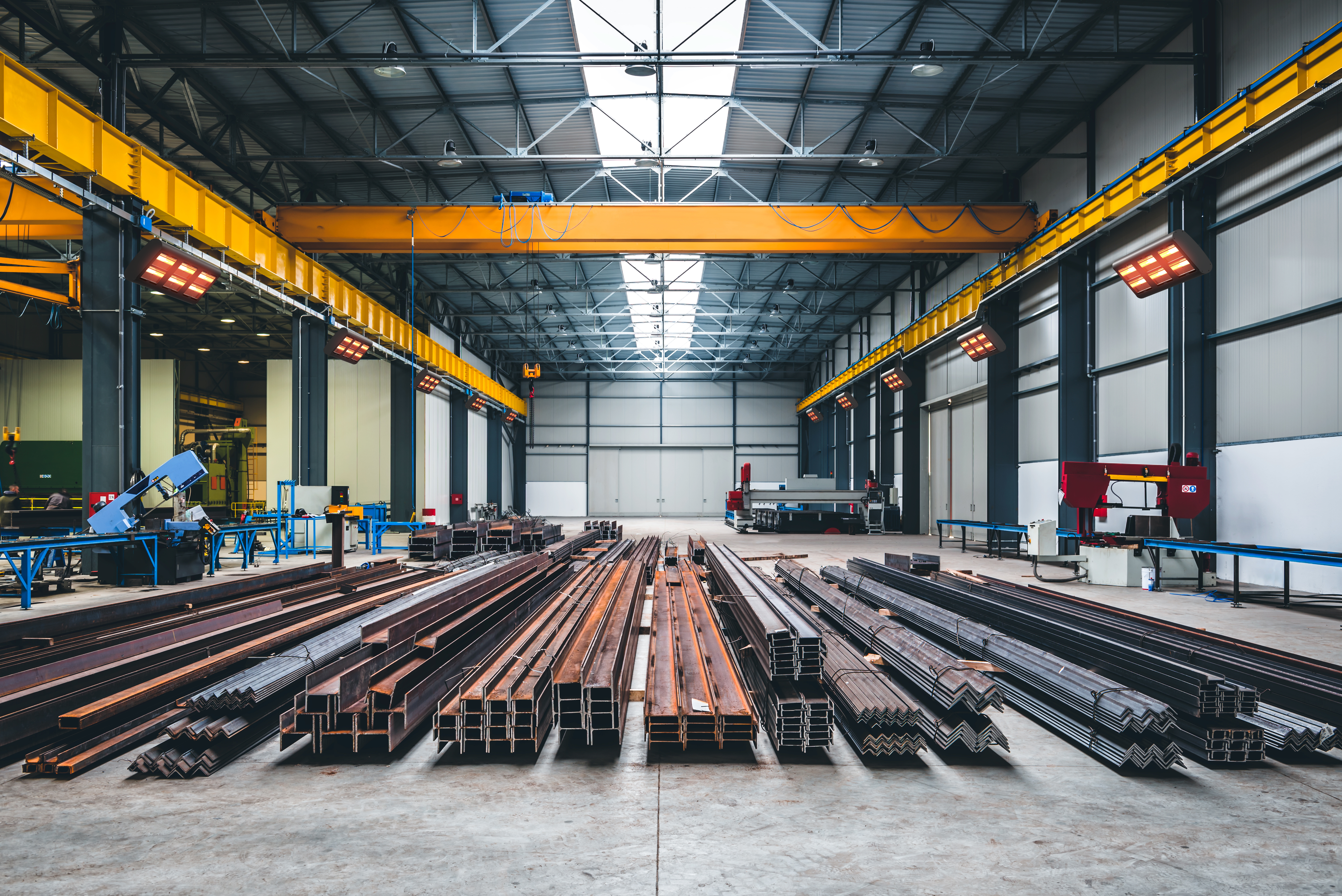

- Manufacturing
- Industrial
- Outdoor Patios

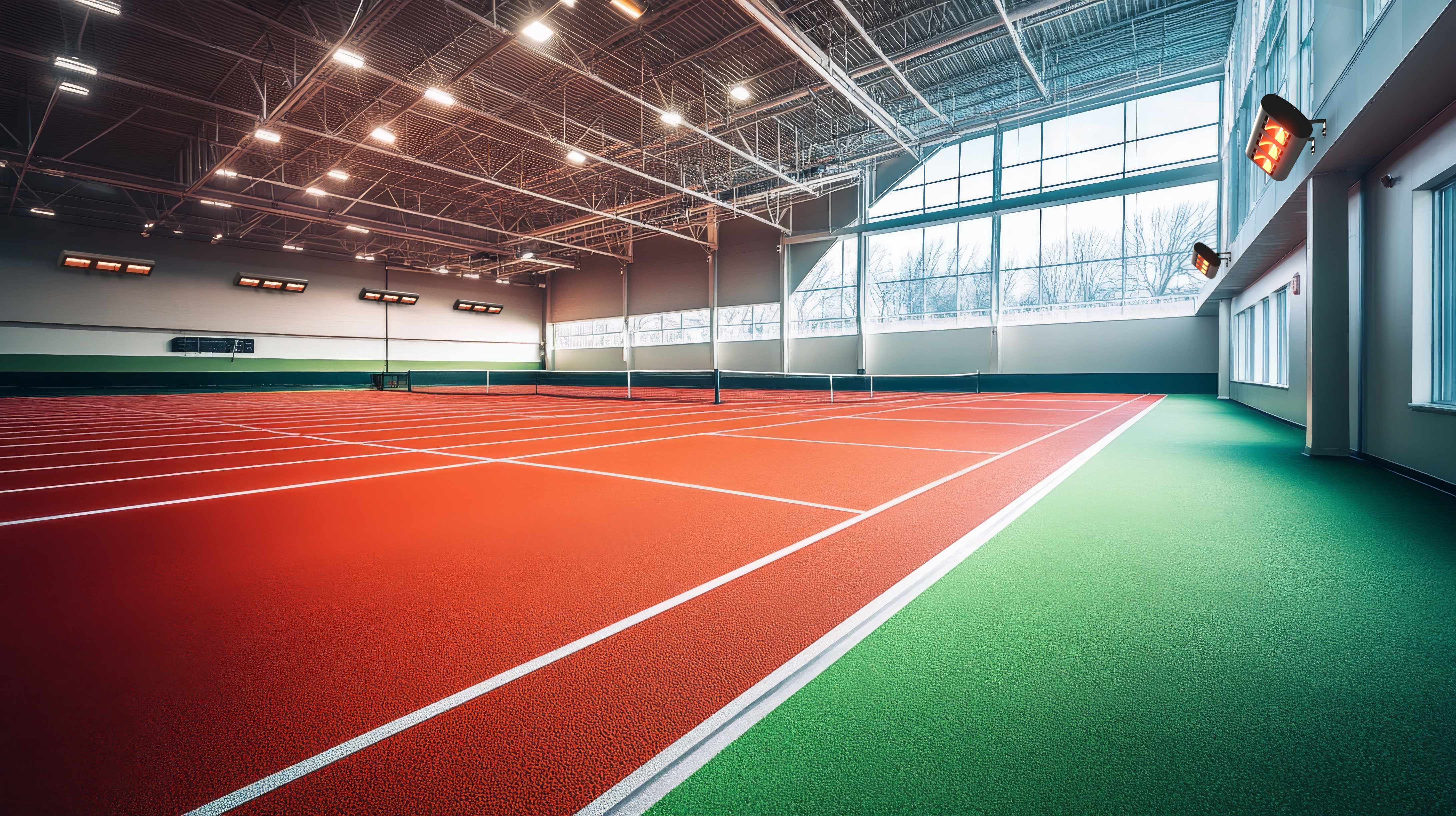

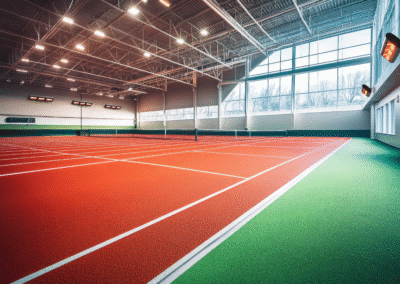

- Stadium / Sports Venues
- Amusement Park

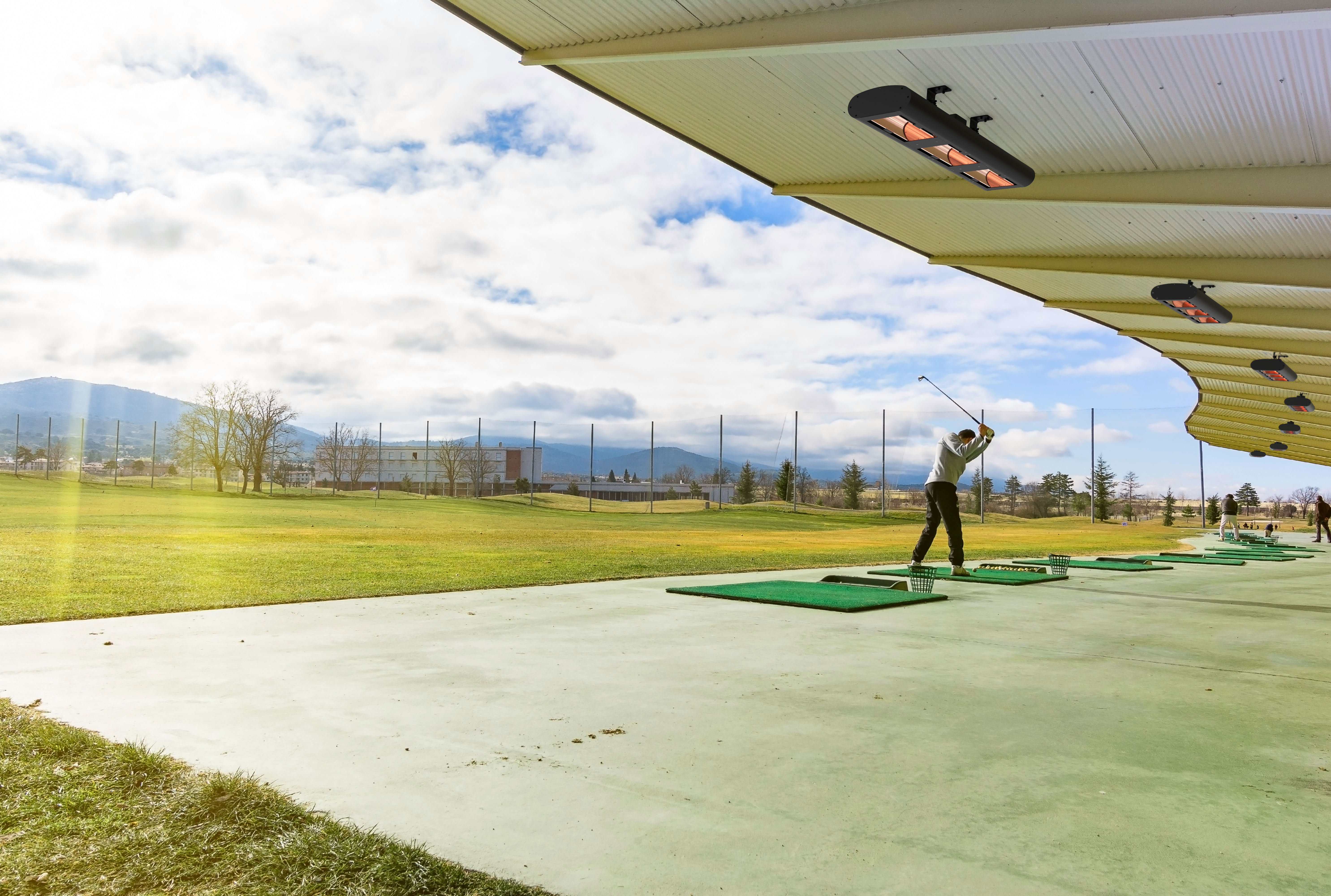

- Golf Ranges / Golf Bay / Facilities
- Resorts / Casino
- Fire Station / Ambulance Bays
Announcement
The heating specialist Schwank has added another climate-neutral product to its portfolio by launching an innovative, powerful, electric infrared heater.
eSchwank Titan Series highlights
Powerhouse of Electric Industrial Heating.
These shortwave 6kW and 12kW models come in 208V / 480V / 600V ~3P options; it is eco-friendly to reduce your carbon footprint. This marine-grade aluminum housing is IP65-rated and perfect for indoor/outdoor spaces.
Flexible mounting options for ceiling, wall, and mount up to 10′- 20′ for optimal heat direction.
Models
- Fuel: Electric Infrared
- Bulb: Short Wave
- Voltage: 208V / 480V / 600V ~3P
- Wattage: 6kW, 12kW
Powerful Heat
· Voltage: 208V / 480V / 600V ~3P.
· Wattage: 6kW.
Versatile Mounting
· Recommended mounting 10′ – 17′ heights.
· Coverage area up to 20′ x 18′.
· Minimal clearance to combustibles 8″ from top.
Titan Strength at the Perfect Size
· Length 50.87″ x Width 11.03″ x Height 7.24″
- Mounting heights: 10’-20’
- Indoor / Outdoor Applications
- Warranty: 2-year
- Optional Accessories: Front Protective Grill
- cELTus Certified
Powerful Heat
· Operators can a contactor panel to pair with Schwank.ONE control seamlessly.
Versatile Mounting
· Recommended mounting 12′ – 20′ heights.
· Coverage area up to 25′ x 24′.
· Minimal clearance to combustibles 8″ from the top.
Titan Strength at the Perfect Size
· Length 50.87″ x Width 16.35″ x Height 8.5″
Features
Powerful Heat
- Engineered with a short wavelength infrared lamp for high-intensity heat output.
- Ultra-low glow bulb compared to clear short-wave blubs.
- Titan-size heating coverage areas like large indoor open spaces or outdoor areas.
- Delivering rapid ramp-up “instant heat” and even heating while reducing energy consumption.
- Marine-grade aluminum housing
Versatile Mounting
- Angle options, vertical and horizontal, for optimal heat distribution.
- Highest mounting up to 10’- 20’.
- High ceilings in dynamic industrial settings.
- Indoor / Outdoor applications.
Simple Controls
- User-friendly wall-mounted ON/OFF disconnect switch.
- Contactor panels (2/3/4 contactors) are used to group heaters for specific zone control, with ON/OFF control.
- Plus, Contactor panels work directly with 24VAC Thermostat, 24VAC input from BMS, and/or Schwank.ONE system control.
Eco-Friendly
- Zero emissions – no direct CO2 or NOx emissions.
- Reduced carbon footprint—environmentally responsible.
- IP65 Outdoor rating.
Downloads
eSchwank Titan Series resources

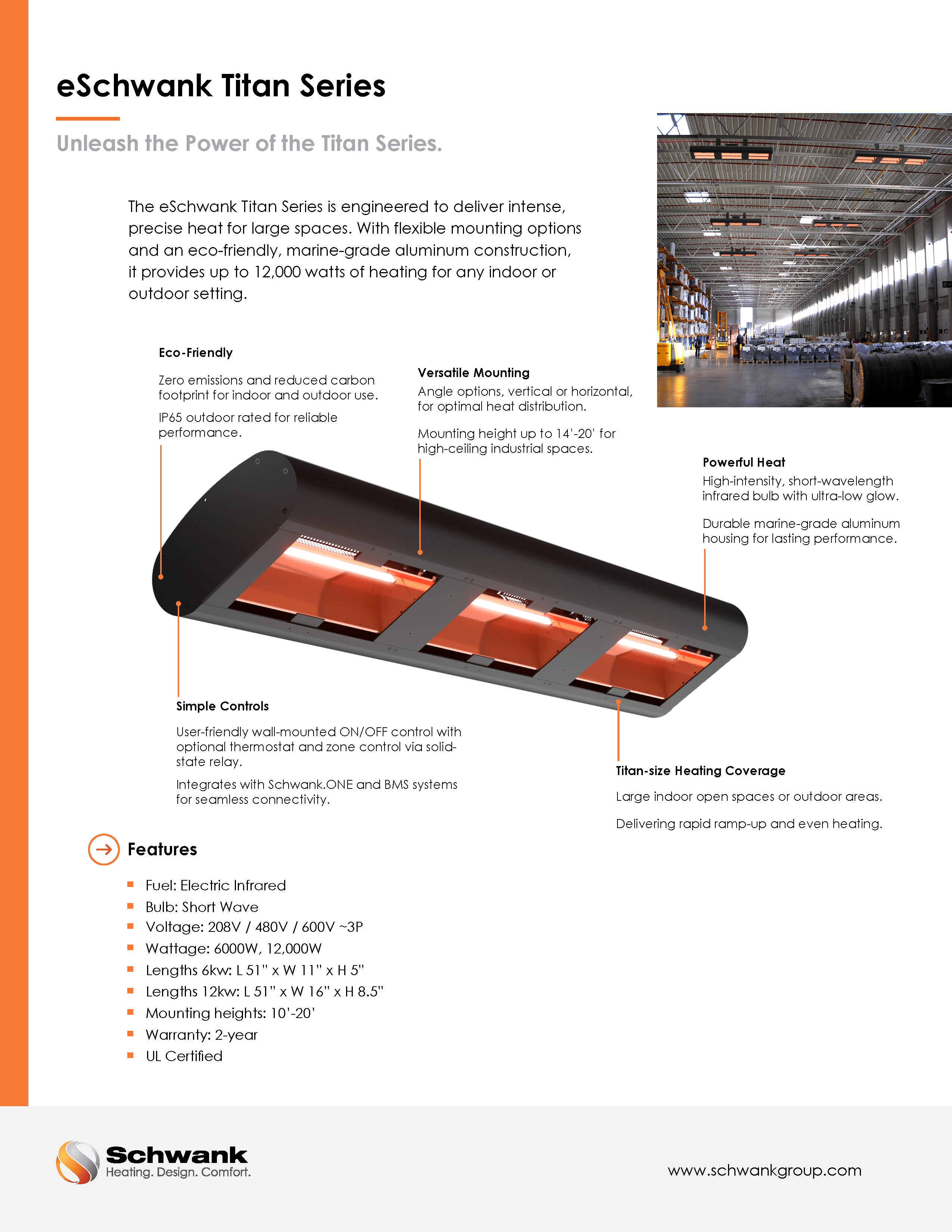

Brochure
Click on the image to view and download PDF.
