Products / Air Curtains / 2500 Series

2500Series

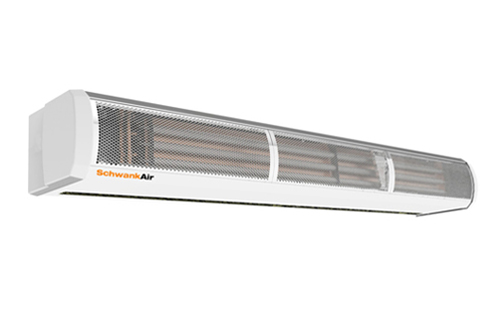

SchwankAir 2500 Series

High-efficiency air curtain

SchwankAir 2500 Series easily mounts in order to create an air seal to keep conditioned air in the building and keep dust, dirt, and insects out. Multiple units can be stacked together for larger door widths.

Applications

  • Retail
  • Automotive
  • Food processing
  • Parking garages
  • Manufacturing
  • Warehouses
  • Cold storage
  • Stadiums
  • Sports venues

SchwankAir 2500 Series highlights

High-efficiency air curtain

SchwankAir 2500 Series easily mounts on doors up to 11’6″ high in order to create an air seal to keep conditioned air in the building and keep dust, dirt, and insects out. Multiple units can be stacked together for larger door widths.

SchwankAir curtains create an effective seal by re-circulating the facility air in a smooth laminar flow across an open doorway. This creates an air seal, like a waterfall, that prevents leakage of air between two areas with different pressure and climate. The more laminar this airflow, the harder it is for outside air, insects, or dust to penetrate the air curtain.

Features

  • Available in 208V, 230V, 480V, and 600V models
  • Available in ambient, electric heated, and hydronic models for any type of application
  • Intelligent control with easy integration with BMS
  • SchwankAir wired controller and door switch is included
  • Easy to install, with wall brackets and ceiling mounting points supplied for surface mount units, or choose an optional recessed air curtain model
  • Length options include 45″, 66″, 87″ models

2500 Series

  • Mounts on any door up to 11’6″ high, and higher CFM
Model Discharge width [inch]
2047-R  38.86
2063-R  58.76
2083-R  73.72
2547-R  43.30
2567-R  64.17
2588-R  84.64

Downloads

SchwankAir 2500 Series resources

Explore product brochures, case studies & technical information.

Brochure

Click on the image to view and download PDF.

Technical documents

SchwankAir 2500 Surface Series
2500 Series Manual – Surface Mount
2500 Series Submittal – Surface Mount
2500 Series Revit
SchwankAir 2500 Recessed Series
2500R Series Manual – Recessed Mount
2500R Series Submittal – Recessed Mount
